RFID access control machine

Function of access control machine: two groups of infrared trigger reading, and the infrared trigger delay time can be set separately;
Support the judgment of personnel in and out, and count the number of people;
It supports integrated audible and visua
Description
Product characteristics
1.Multi tag reading ability is very strong, with very low missing reading rate and Misreading rate
2.The antenna is customized to realize the horizontal narrow beam design, and the access control coverage area is accurate without blind spots
3.Alarm sensitive, safe and reliable, alarm information

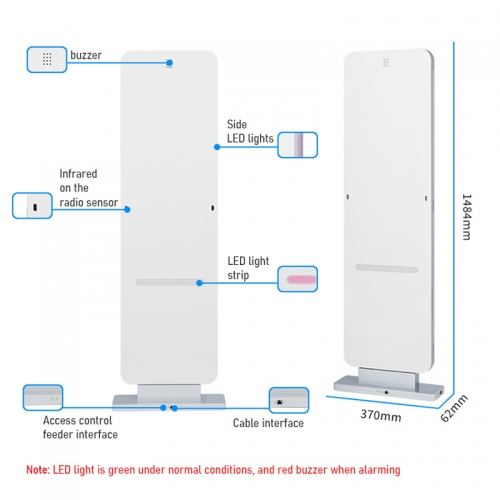

4.Built in alarm lamp and buzzer, external alarm lamp
5.RFID safety doors are placed at a wider distance, up to 3m

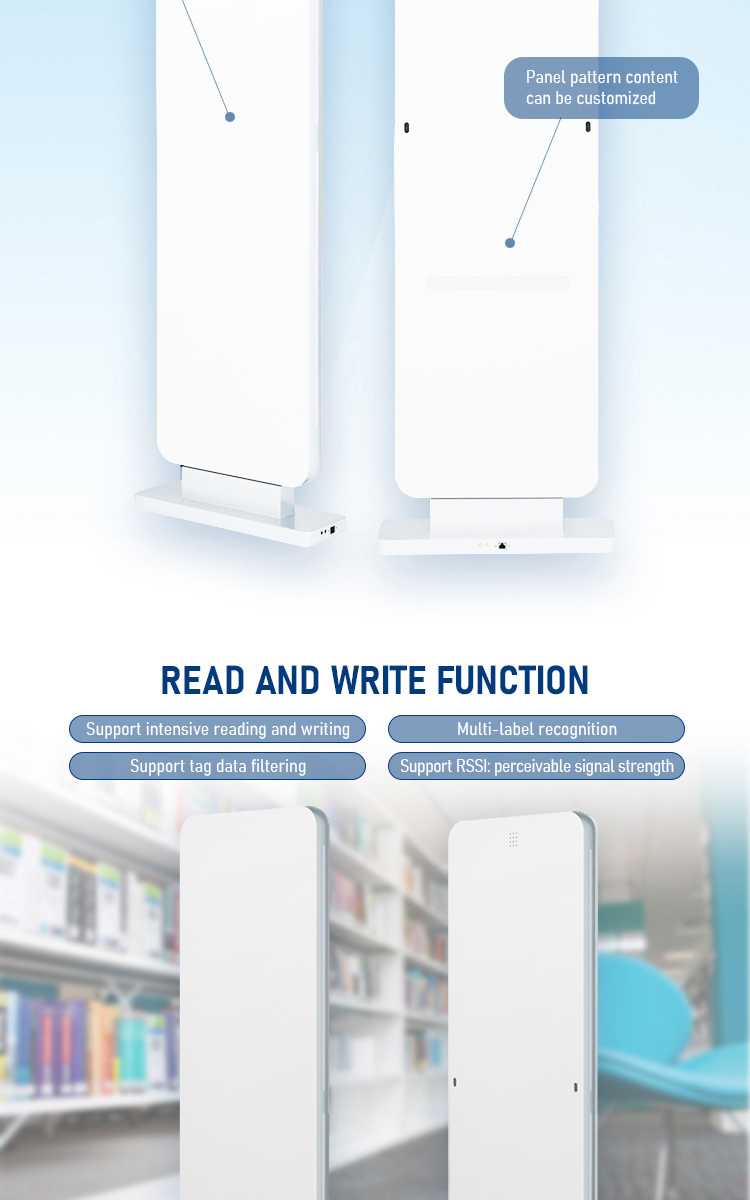

6.The appearance is fashionable, and the panel pattern content can be customized
7.Combined with the background system, it can provide a variety of statistical information
8.It can be externally connected with LED display to display the information and quantity of books in real time, and count the number of people in and out
9.Through infrared trigger reading, the service life of the equipment can be greatly prolonged
Specifications and parameters of RFID access control machine
1. Working frequency: 840mhz ~ 960MHz, which can be set
2. Air interface protocol: ISO 18000-6c / EPC C1G2, ISO 18000-6b, GB / t29768-2013 (expandable support)
3. Read / write function: support intensive read / write, multi tag identification, tag data filtering, RSSI: perceptible signal strength
4. Function: two groups of infrared trigger reading, and the infrared trigger delay time can be set separately;
Support the judgment of personnel in and out, and count the number of people;
It supports integrated audible and visual alarm, and the alarm delay time can be set separately;
EAS anti-theft bit supports, and one anti-theft bit can be set arbitrarily according to the needs of the label.
5. Reading distance: 0-400cm (adjustable, recommended door width 100cm, best effect)
6. Front and rear identification distance: within 1m (use U8 book label - for reference)
7. Communication interface: RJ45; RS232 (WiFi optional)
